因为传感器等数据观测者会存在观测偏差与精度缺失,或是信号传输中产生噪声.

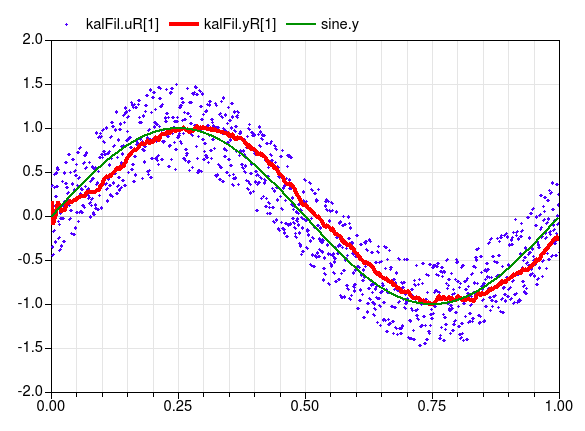

相当于根据样本值的分布,进行实际值的拟合.
按照当前的拟合趋势,提前判断下一个点的位置,就实现了预测的功能.
核心思想是贝叶斯滤波,外加一些矩阵的基本操作.
将当前运动状态视为一个正态分布
这是一个递推过程.
预测就是要确定下一时刻的目标概率分布,即确定相应的$u_k$期望与$\sigma_k$方差
通过以下五个式子实现预测与更新:
①$u_k^-=Fu_{k-1}^+$
②$\sigma_k^-=F\sigma_{k-1}^+F^T + Q_k$
③$K = \sigma_k^- H^T(H \sigma_k^- H^T+R_k)^{-1}$
④$u_k^+=u_{k}^-+K(y_k - Hu_k^-)$
⑤$\sigma_k^+=(I-KH)\sigma_{k}^-$
其中上下标+-表示当前轮状态的后验概率与先验概率.
graph LR
A[上一帧的后验] -- 预测 --> B[这一帧的先验] --修正 --> C[这一帧的后验] --> D[作为下一帧的输入]
具体推导过程就不说了,这里给出一些参考资料: 哔站最强kalman推导(从贝叶斯滤波开始):https://space.bilibili.com/287989852/ 相应的推导博客:https://blog.csdn.net/wq1psa78/article/details/105849353 油管最强kalman通俗演讲: https://www.youtube.com/watch?v=CaCcOwJPytQ&list=PLX2gX-ftPVXU3oUFNATxGXY90AULiqnWT 一个例子搞清楚（先验分布/后验分布/似然估计 : https://blog.csdn.net/qq_23947237/article/details/78265026
主体kalman操作函数借用了opencv自带kalman.cpp
class CV_EXPORTS_W KalmanFilter{
public:
CV_WRAP KalmanFilter();
CV_WRAP KalmanFilter( int dynamParams, int measureParams, int controlParams = 0, int type = CV_32F );
/** @brief Re-initializes Kalman filter. The previous content is destroyed.
@param dynamParams Dimensionality of the state.
@param measureParams Dimensionality of the measurement.
@param controlParams Dimensionality of the control vector.
@param type Type of the created matrices that should be CV_32F or CV_64F.
*/
void init( int dynamParams, int measureParams, int controlParams = 0, int type = CV_32F );
/** @brief Computes a predicted state.
@param control The optional input control
*/
CV_WRAP const Mat& predict( const Mat& control = Mat() );
/** @brief Updates the predicted state from the measurement.
@param measurement The measured system parameters
*/
CV_WRAP const Mat& correct( const Mat& measurement );
CV_PROP_RW Mat statePre; //!< predicted state (x'(k)): x(k)=A*x(k-1)+B*u(k)
CV_PROP_RW Mat statePost; //!< corrected state (x(k)): x(k)=x'(k)+K(k)*(z(k)-H*x'(k))
CV_PROP_RW Mat transitionMatrix; //!< state transition matrix (A)
CV_PROP_RW Mat controlMatrix; //!< control matrix (B) (not used if there is no control)
CV_PROP_RW Mat measurementMatrix; //!< measurement matrix (H)
CV_PROP_RW Mat processNoiseCov; //!< process noise covariance matrix (Q)
CV_PROP_RW Mat measurementNoiseCov;//!< measurement noise covariance matrix (R)
CV_PROP_RW Mat errorCovPre; //!< priori error estimate covariance matrix (P'(k)): P'(k)=A*P(k-1)*At + Q)*/
CV_PROP_RW Mat gain; //!< Kalman gain matrix (K(k)): K(k)=P'(k)*Ht*inv(H*P'(k)*Ht+R)
CV_PROP_RW Mat errorCovPost; //!< posteriori error estimate covariance matrix (P(k)): P(k)=(I-K(k)*H)*P'(k)
};其中
CV_PROP_RW Mat statePre;是先验状态,代表$X_k^-$
CV_PROP_RW Mat statePost是后验状态,代表$X_k^+$
CV_PROP_RW Mat transitionMatrix是状态转移矩阵,代表$F$
CV_PROP_RW Mat measurementMatrix是观测模型矩阵,代表$H$
CV_PROP_RW Mat processNoiseCov,CV_PROP_RW Mat measurementNoiseCov是噪音,代表$R$和$Q$
CV_PROP_RW Mat gain是卡尔曼增益,代表$K$
graph LR
A[初始化滤波器] --> B[先修正] --> C[再预测] --> D[图形化显示]
初始化状态向量和测量向量:确定维度,及初始化这两个向量
KF.init(stateSize, measSize, contrSize, CV_32F);
state=cv::Mat(stateSize, 1, CV_32F);
measure=cv::Mat(measSize, 1, CV_32F);初始化状态转移矩阵与观测矩阵:
KF.transitionMatrix = (Mat_<float>(stateSize,stateSize) <<
1,0,0,0,1,0,0,0,1,0,
0,1,0,0,0,1,0,0,0,1,
0,0,1,0,0,0,1,0,0,0,
0,0,0,1,0,0,0,1,0,0,
0,0,0,0,1,0,0,0,0,0,
0,0,0,0,0,1,0,0,0,0,
0,0,0,0,0,0,1,0,0,0,
0,0,0,0,0,0,0,1,0,0,
0,0,0,0,0,0,0,0,1,0,
0,0,0,0,0,0,0,0,0,1
);
KF.measurementMatrix = (Mat_<float>(measSize,stateSize,CV_32F)<<
1,0,0,0,0,0,0,0,0,0,
0,1,0,0,0,0,0,0,0,0,
0,0,1,0,0,0,0,0,0,0,
0,0,0,1,0,0,0,0,0,0
);设置噪音:
/**设对角线为scalar的噪音*/
setIdentity(KF.processNoiseCov, Scalar::all(1e-5));
setIdentity(KF.measurementNoiseCov, Scalar::all(1e-1));
setIdentity(KF.errorCovPost, Scalar::all(1));确定时间$dT$
float deltaT = (timeStamp - m_lastTimeStamp) /1000;更新状态转移矩阵
KF.transitionMatrix = (cv::Mat_<float>(stateSize,stateSize)
<<
1,0,0,0,deltaT,0 ,0 ,0 ,deltaT*deltaT/2,0 ,
0,1,0,0,0 ,deltaT,0 ,0 ,0 ,deltaT*deltaT/2,
0,0,1,0,0 ,0 ,deltaT,0 ,0,0,
0,0,0,1,0 ,0 ,0 ,deltaT,0,0,
0,0,0,0,1 ,0 ,0 ,0 ,0,0,
0,0,0,0,0 ,1 ,0 ,0 ,0,0,
0,0,0,0,0 ,0 ,1 ,0 ,0,0,
0,0,0,0,0 ,0 ,0 ,1 ,0,0,
0,0,0,0,0 ,0,0,0,1,0,
0,0,0,0,0 ,0,0,0,0,1
);载入观测值,进行修正
measure= (Mat_<float>(measSize,1) <<bBox.x,bBox.y,bBox.width,bBox.height);

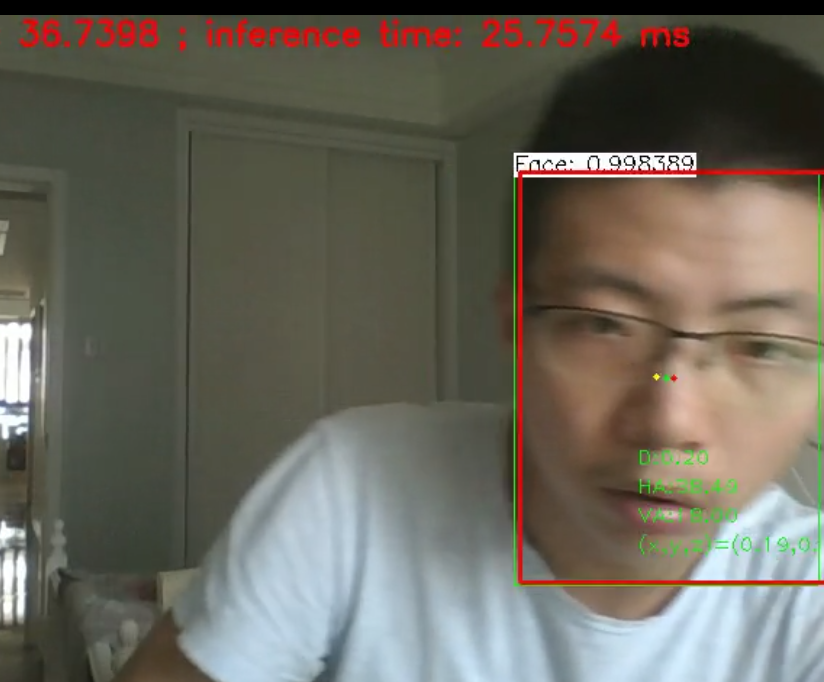

KF.correct(measure);state = KF.predict();黄色为上一帧的位置,绿色为实际(观测值)位置,红色为预测位置.
/**获取预测位置,[x,y,w,h] 左上点坐标 宽 高*/
cv::Mat& state = kalman_filter.state;
/**预测位置偏差太大,筛选不要*/
if(abs(state.at<float>(0)-faces[i].x)>faces[i].x){
continue;
}
/**用于打印预测框 @红色red*/
cv::Rect predRect;
predRect.width = state.at<float>(2);
predRect.height = state.at<float>(3);
cv::Point center;
center.x = state.at<float>(0)+predRect.width / 2;
center.y = state.at<float>(1)+predRect.height / 2;
predRect.x = state.at<float>(0);
predRect.y = state.at<float>(1);
cv::circle(frame, center, 2, CV_RGB(255,0,0), -1);
cv::rectangle(frame, predRect, CV_RGB(255,0,0), 2);
/**评估预测误差,直接采用差的平方和*/
Mat predict_box = state(Range(0,4),Range(0,1)).clone().t();
Mat Real_box = (Mat_<float >(1,4)<<faces[i].x,faces[i].y,faces[i].width,faces[i].height);
cout<<"|predict_box : "<<predict_box<<endl;
cout<<"|Real_box : "<<Real_box<<endl;
Mat result ;
cv::pow(Mat(predict_box-Real_box),2,result);
int err= 0;
for(int i = 0 ; i < 4 ; i++){
err += pow(predict_box.ptr<float>(0)[i]-Real_box.ptr<float>(0)[i],2);
}
err_sum+=err;
cout<<"|------- err : "<<err<<endl;
cout<<"|------- aver_err : "<<err_sum/cur_frame<<endl;这里最主要的就是状态转移矩阵和观测矩阵的设置,现在用一个匀加速模型作为例子,进行分析.
首先确定运动模型(牛顿运动学公式 - 本质是进行泰勒展开!):
然后确定我们需要的向量: $$ \begin{bmatrix} x \ y \ w \ h \ v_x\ v_y\ v_w\ v_h\ a_x\ a_y\ \end{bmatrix} $$ 上面定义了一个可以进行匀加速预测的模型,可以进行位置的确定和状态框的缩放.
根据上述的运动学公式我们不难定义相应的状态转移矩阵$F$ $$ F = \left [ \begin{matrix} 1 & 0& 0& 0& dt& 0 & 0 & 0 & \frac{1}{2}dt^2 & 0 \ 0&1&0&0&0 &dt&0 &0 &0 &\frac{1}{2}dt^2\ 0&0&1&0&0 &0 &dt&0 &0&0\ 0&0&0&1&0&0 &0 &dt&0 &0\ 0&0&0&0&1&0&0 &0 &dt&0 \ 0&0&0&0&0&1&0&0 &0 &dt\ 0&0&0&0&0&0&1&0&0 &0 \ 0&0&0&0&0&0&0&1&0&0 \ 0&0&0&0&0&0&0&0&1&0 \ 0&0&0&0&0&0&0&0&0&1\ \end{matrix} \right ] $$ 具体运算过程如下: $$ \left [ \begin{matrix} x^k \ y^k \ w^k \ h^k \ v_x^k\ v_y^k\ v_w^k\ v_h^k\ a_x^k\ a_y^k\ \end{matrix} \right ] = \left [ \begin{matrix} 1 & 0& 0& 0& dt& 0 & 0 & 0 & \frac{1}{2}dt^2 & 0 \ 0&1&0&0&0 &dt&0 &0 &0 &\frac{1}{2}dt^2\ 0&0&1&0&0 &0 &dt&0 &0&0\ 0&0&0&1&0&0 &0 &dt&0 &0\ 0&0&0&0&1&0&0 &0 &dt&0 \ 0&0&0&0&0&1&0&0 &0 &dt\ 0&0&0&0&0&0&1&0&0 &0 \ 0&0&0&0&0&0&0&1&0&0 \ 0&0&0&0&0&0&0&0&1&0 \ 0&0&0&0&0&0&0&0&0&1\ \end{matrix} \right ] * \left [ \begin{matrix} x ^{k-1}\ y ^{k-1}\ w^{k-1} \ h ^{k-1}\ v_x^{k-1}\ v_y^{k-1}\ v_w^{k-1}\ v_h^{k-1}\ a_x^{k-1}\ a_y^{k-1}\ \end{matrix} \right ] $$ 拿出第一行进行解释: $$ x^k=1*x^{k-1}+v_x^{k-1}dt+\frac{1}{2}a^{k-1}_xdt^2 $$
观测矩阵的作用就是把当前状态向量转化为观测向量 这里就是把10维转为4维 $$ \left [ \begin{matrix} x \ y \ w \ h \end{matrix} \right ] = \left [ \begin{matrix} 1 & 0& 0& 0& 0& 0 & 0 & 0 &0 & 0 \ 0&1&0&0&0 &0&0 &0 &0 &0\ 0&0&1&0&0 &0 &0&0 &0&0\ 0&0&0&1&0&0 &0 &0&0 &0\ \end{matrix} \right ] * \left [ \begin{matrix} x ^{k}\ y ^{k}\ w^{k} \ h ^{k}\ v_x^{k}\ v_y^{k}\ v_w^{k}\ v_h^{k}\ a_x^{k}\ a_y^{k}\ \end{matrix} \right ] $$
参考资料 卡尔曼滤波运动模型 : https://www.docin.com/p-2004245093.html 卡尔曼滤波的理解以及参数调整 : https://blog.csdn.net/u013453604/article/details/50301477
其他学习资料: https://www.kalmanfilter.net/
